CHANGELOG:


V1.05 del 03/01/2019:

- Support for new version V2.00 of ShowMan.



V1.04 del 28/09/2014:

- New timebase engine for very slow fade in / out effects with improved smoothness.



V1.03b del 27/01/2014:

- Minor changes for ShowMan compatibility.



V1.03 del 28/12/2013: (from user's feedback):

- The starting point for Dimmer Setting is now lower in brightness (a lower level can be set).
- The Christmas tree will halt the show and lower the brightness to confirm touch key activation, instead of turning white.



V1.02 del 25/12/2013:

- The Christmas tree will shift to cold/warm colors, accordingly to the ambient temperature (if lower than 10C or higher than 35C)
- Doubled the master Dimmer regulation speed.
- Zero-length user's shows will be automatically dropped.



V1.01 del 22/12/2013:

- Master Dimmer function.
- New salmon-coloured show.
- User's shows upload-ready (via USB).



V1.00 del 09/10/2013:

- First version for hardware test.


The Christmas Tree operates at 24Vdc, 700mA max. All it's functions are controlled via a Touch Key, located on the top of the base.

It's equipped with an USB port for DMX/RDM control, firmware update and user's custom shows upload.
Several pre-programmed color sequences (shows) are embedded in the firmware.

The USB port can't be used to power the device.





OPERATING INSTRUCTIONS (updated to firmware V1.05):

1) Connect the power supply cable to the socket at the base of the device, then plug the power supply into a 230Vac mains outlet.
     A red led under the base will flash for a few seconds, then it will turn off.

2) To turn on the Christmas tree, briefly press the Touch key. The selected show (the first one by default) will start playing on key release.

3) Briefly pressing the touch key again will switch to the next color show. The number of available shows depends on the firmware.
     When the last show is reached, pressing the key again will turn back to the first one. The red led under the base will emit a number
     of flashes, accordingly to the number of the show being played.
     To confirm touch key activation, the Christmas tree will halt the sequence and lower the brightness by an half

4) To turn off the Christmas tree, keep the touch key pressed for at least 1,5 seconds.

5) To turn it on again, go to step n. 2.

6) Keeping the key pressed during power-on for at lease 1,5 seconds will activate the Master Dimmer function.
     The device will turn white and start increasing brightness: release the key when the desired brightness level is reached.

Dimmerl level, selected show and on/off status are stored in nonvolatile memory and will survive a power cycle.





UPDATING the FIRMWARE:

Flashing the firmware can be accomplished while the Christmas tree is either On or Off and with or without the power supply connected.
A Windows-based pc running Microsoft XP/Win7/Win8/Win10 is needed. A software for MAC users will be added soon.

Before connecting the device to the PC, please install FTDI Drivers, available here:

Windows

MAC

After driver installation, connect the Christmas tree to the PC's USB port with the provided cable and wait for the operating system to recognize it.

Then:

1) Download the RDM Firmware Updater from this link: "Download RDM Updater" and start it (does not require installation);

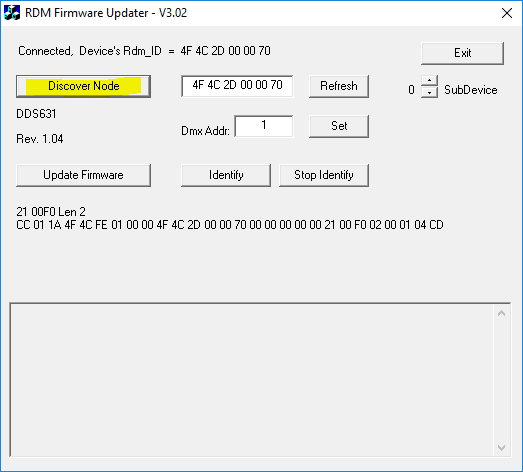

2) Click on the "Discover Node" button, highligted in this screenshot:





Click on the "Discovery" button

The upper line wiill display the product's serial number, while below the “Discover Node” button you will see the product’s name and firmware version currently installed.

If the installed firmware version is earlier than the latest available, go ahead with the following steps:

3) Download the firmware from the "Download X.XX Firmware" link, then unpack the file somewhere (i.e. on the desktop).

4) Click on the "Update Firmware" button;

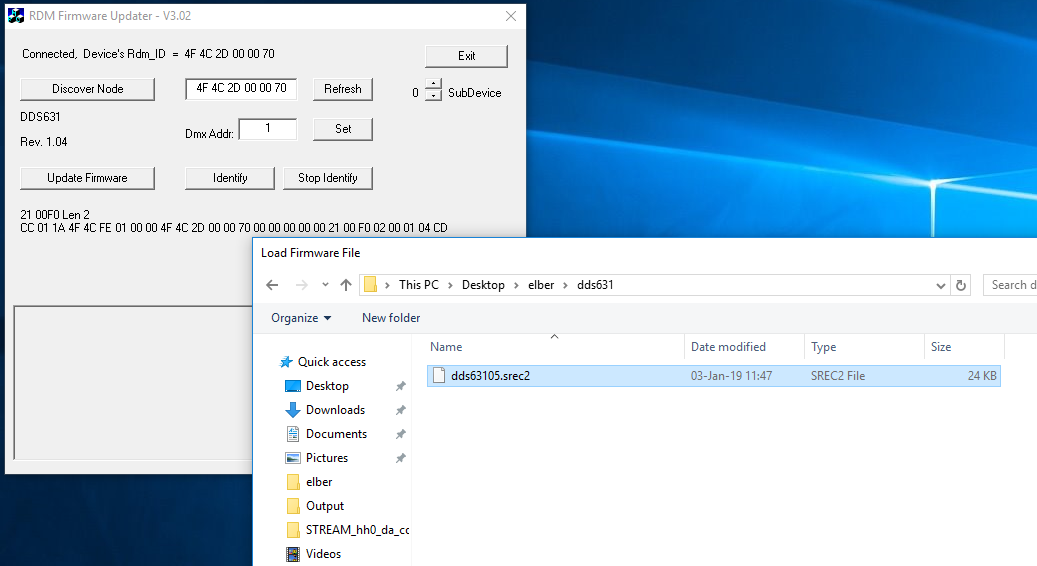

5) Navigate to the previously unpacked file, as shown in this screenshot:





Select the .srec2 file

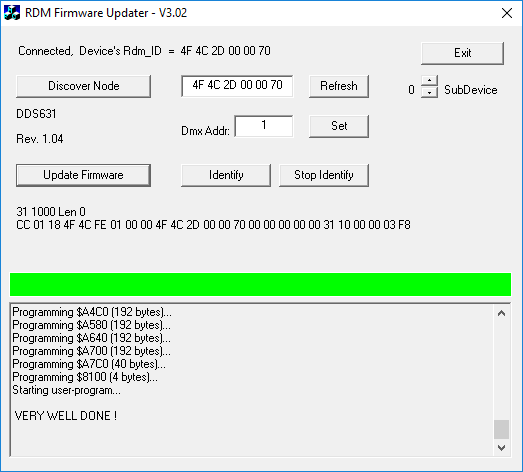

When flashing operation completes, the program’s window should look as shown in this screenshot:





Click on the "Close" button when flashing completes



This procedure can be re-attempted from the beginning in case of any kind of interruption (even a power failure).

You can now turn the Christmas tree ON again by pressing the Touch button.

If you wish to check the newly installed firmware version, click on "Discover Node" button again.
